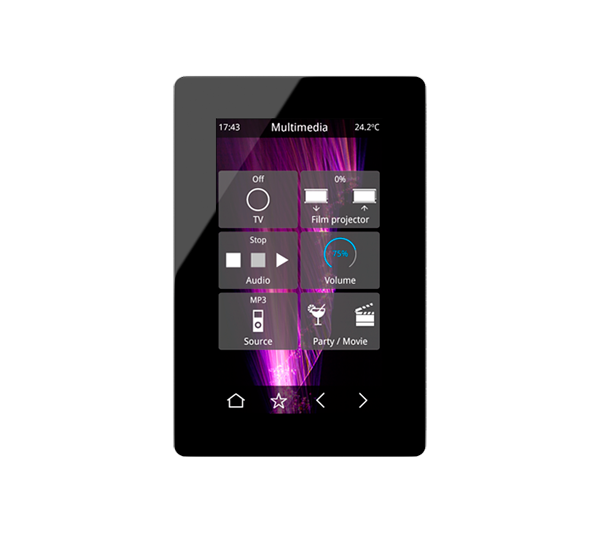

HC3-KNX

Control unit for KNX-based home and building automation installations, featuring
a 7” TFT capacitive touch screen, integrated web server, and video door phone
function. GLASS (full glass front) and CLASSIC (interchangeable front frames)
models available.
 Function highlights:
o Control and monitoring of KNX devices
o Simple, user-friendly navigation through floorplans and zones
o Up to 512 configurable pages, with up to 8 control functions per
page (more than 4000 functions)
o Customizable background images
o User-editable scenes
o Weekly time schedules
o Alarm monitoring with event log
o Presence simulation with day and night schedules
o Event notifications by e-mail and GSM (*)
o Logic functions (logic gates, comparators, timers, etc.)
o Four independent thermostats
o Touch gestures: 4 directional gestures + multitouch gesture

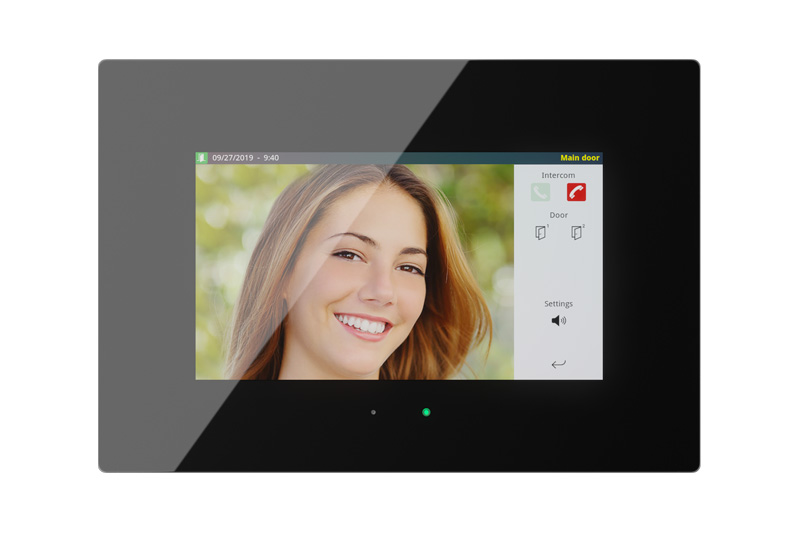

o Video door phone function, with full duplex audio and echo cancellation () o IP camera monitoring ()
 Remote control from smartphones, tablets, and PCs
 Integrated stereo loudspeakers and digital microphone
 Four multi-function inputs, individually configurable as binary or temperature probe inputs
 Real-time clock (RTC) with backup battery
 Integrated KNX bus coupling unit
 Very low power consumption
